1500*2500mm Cutting Size 420mpa CNC High Pressure Pure Water Water Jet Foam Cutting Machine

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Harbin Qian Fan Xi Feng Machinery Co.Ltd
[China]

Address
301, building 2,yongancheng,Songbei district, Harbin,China Haerbin Heilongjiang
Phone
86-1894-5047060
Contact name
Linda

Quick Information

  • Brand Name: WAMIT
  • Place of Origin: China
  • Model Number : WMT1525-AL
  • WARRANTY : 2 Years
  • Max water discharger : 3.7 L/min
  • Max diameter of orif : 0.33 mm
  • Continuous operating : 330-390 MPa
  • Maximum pressure : 420 MPa

Description

1500mm*2500mm 420mpa cnc high pressure pure water foam water jet cutter with CE 420Mpa 3 axis

.jpg

High pressure water jet cutting machine for Acrylic/carbon steel/foam/marble/rubber/glass stainless steel/aluminum/mild steel/granite/brass/ceramic/copper/stone&tile/meat/fiber glass high speed 420Mpa 3 axis CNC with new technology of us can make the machine moving speed to 30M/MIN,so it will reduce your half using cost!

.jpg

Metal cutting machine

Name

Item

Parameter

Intensifier Pump



Model

WMT3742Z

motor

SIEMENS

Method of Direction Regulation

Electronic direction regulation

Pressure Range

50-420MPA, continuous pressure is 330-380Mpa

Maximum Flow of Hydraulic

Pump

90 L/min

Maximum Discharge Capacity

3.7 L/min

Maximum Diameter of Gem

Nozzle

0.33 mm

Power of Master Motor

37 KW

Power Source

380V/50HZ, also work at 220V/60HZ, 415V

Cutting Table

X axis Characteristic

use strong 10MM steel, 1500MM cutting range. The cutting table width is 1700mm

Y axis Characteristic

Cast iron is used as the foundation base , 2500MM cutting range . The cutting table length is 2700mm.

Z axis Characteristic

Z axis double linear guide and four sliding block , 170MM, CAN DO 200MM

Control Accuracy

±0.01mm, cutting accuracy is

±0.1mm, reposition accuracy:

±0.02mm, max travelling speed:6000mm/min,

we have new technology that can make the travelling speed 20-30m/min.

linear guider

TAIWAN TBI BRAND

Table Ctructure

can be delivered by one 40'FCL container

Driving Way

Servo drive system

CNC system

Ncstudio ,Fagor

Servo Motor

SIEMENS motor

Cutting Head

Casting structure and Concrete structure

Sealing Way

soft dustproof cloth on X,Y,Z axis,the sealing

result will be better,and there is a oil tank under the cutting table,the linear guider no need maintainence.

Loading Weight Water Tank

Wall thickness is 6mm,using fluorocarbon

coating, Can antirust at least 5 years.

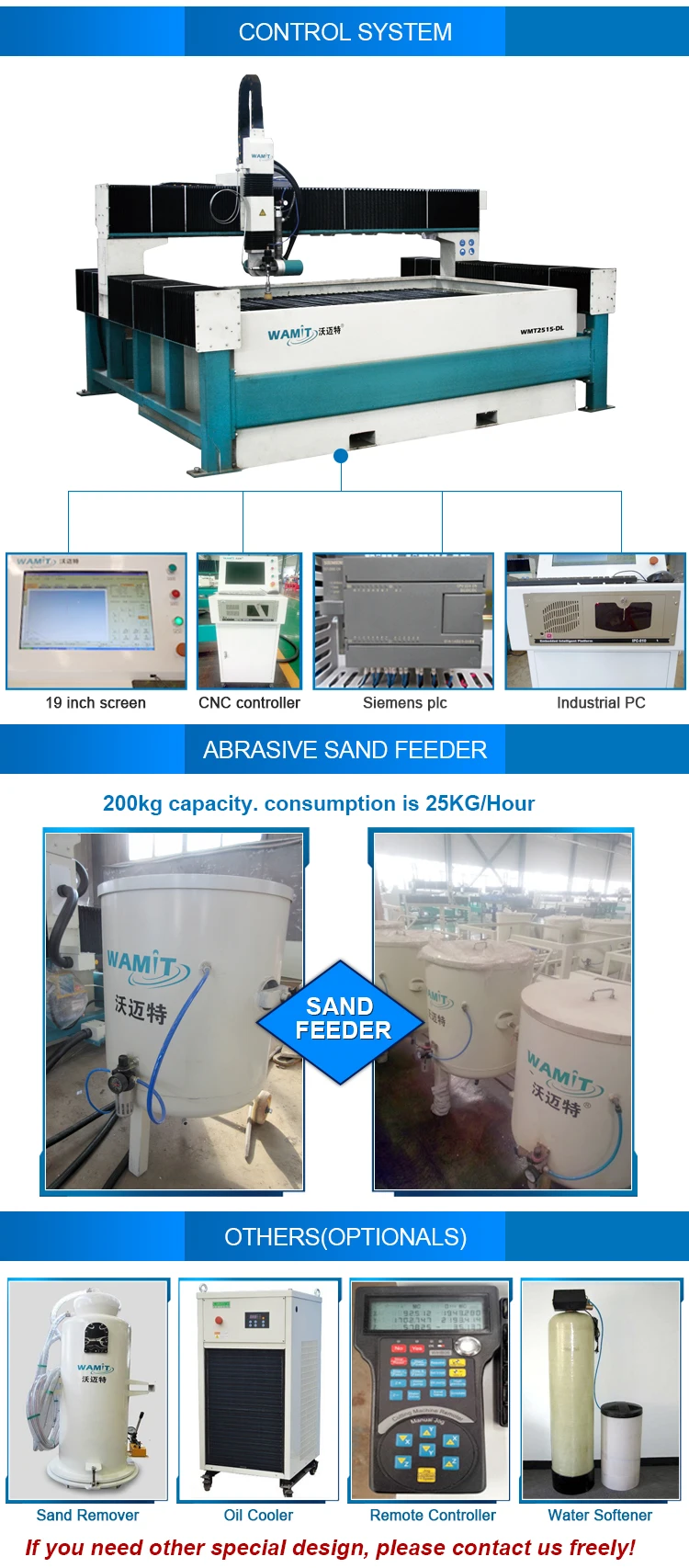

CNC Controller

Control Method

CNC

Display Size

19inch LCD

Model of Cutting Text

DXF

Model of Computer

Industrial Control Computer

Operating System

Windows 7

PLC

SIEMENS

Cutting Software Advantage

Auto save and transfer common parameter

Controller Displace

Can be fit to suitable place at own will

Automitic Abrasive

Feeder

Founction

Sand storage and sand delivery

Operating

No need electrocnic control,sample operation

Capacity

200 kg for 8 -10hours

Pressure

0.3-0.6Mpa compresses gas pressure

Color

White



Deionization System

Water pressure

0.15Mpa~0.6Mpa

Water temperature

5°C~50°C

Environment temperature

5°C~50°C

Relative humidity

≤95%(25°C)

Water turbidity

<20FTU

Wireless Handle

Founction

Wireless controlling waterjet

Display

Real- time display condition of X,Y,Z axis

Settings

Zero point, on/off valve set, X,Y,Z axis moving

Technology

Advanced technology


Advantage:

1.37KW SIEMENS motor
2.All electric components are Schneider brand
3.Can do special size and special design according to customer’s demand
4.Free abrasive sand feeding system
5.We have most convenient automatic abrasive sand removing and recycling system for any brand water jet cutting machine
6.Imported intensifier pump
7.Use 8mm steel to make the cutting table stronger and keep the precision time for whole life
8.Soft cover for linear guider or gear and rack, can effectively prevent dust
9.Install an automatic oil tank for cutting table , no need maintenance of linear guider
10.Legitimate WINDOWS 7 system and install the Chinese newest water jet cutting system
11.TBI linear guider and ball screw
12.Variable servo pump can reduce the electricity cost
13.We have agents in America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam
14.We can make machine moving speed to 10-50m/min which will improve your cutting efficiency
15.We are finding agent all over the world


Models of Bridge type CNC waterjet cutting machine

Model number

X Axis

(mm)

Y Axis

(mm)

Z Axis

(mm)

WMT1010-AL

1000

1000

150-200

WMT1515-AL

1300

1300

150-200

WMT2015-AL

1500

2000

150-200

WMT2515-AL

1500

2500

150-200

WMT2520-AL

2000

2500

150-200

WMT3015-AL

1500

3000

150-200

WMT3020-AL

1800

3000

150-200

WMT4020-AL

1500

4000

150-200

  WMT4030-AL

1800

4000

150-200

WMT5020-AL

2000

5000

150-200

WMT6020-AL

2000

6000

150-200

WMT8020-AL

2000

8000

150-200

WMT12020-AL

2000

12000

150-200

WMT5030-AL

3000

5000

150-200

WMT6030-AL

3000

6000

150-200

  WMT8030-AL

3000

8000

150-200

WMT12030-AL

3000

12000

150-200

Models of cantilever type CNC waterjet cutting machine

Model number

X Axis (mm)

Y Axis (mm)

Z Axis (mm)

WMT1010-AX

1000

1000

150-200

WMT1515-AX

1300

1300

150-200

WMT2015-AX

1500

2000

150-200

WMT2515-AX

1500

2500

150-200

WMT2520-AX

2000

2500

150-200

WMT3015-AX

1500

3000

150-200

WMT3020-AX

1800

3000

150-200

WMT4015-AX

1500

4000

150-200

WMT4020-AX

1800

4000

150-200

WMT4030-AX

2000

4000

150-200

WMT5020-AX

2000

5000

150-200

WMT6020-AX

2000

6000

150-200

WMT8020-AX

2000

8000

150-200

WMT9020-AX

2000

9000

150-200

WMT10020-AX

2000

10000

150-200







We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts,  whole-life after-service for the entire machine.
our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials. ++++FAQ.jpg


1. What are the benefits of purchasing a water jet cutting machine comparing EDM, Laser, Plasma or Machine tool?

Requirements Waterjet EDM Laser Plasma Machine tools
Cost and time efficient Yes No Yes Yes No
High tolerance, precise cutting Yes Yes Yes No No
No burned edges, no HAZ Yes No No No Yes
Multi-head cutting Yes No Yes No Yes
Steel is over 150mm thickness Yes Yes No Yes Yes
No distortion or discoloration Yes Yes No No Yes
Nesting yield Yes Yes Yes No No
Shiny, mirror finish Yes Yes No No Yes
Brittle,soft or hard material Yes Yes Yes Yes No
Stainless steel, copper, brass or exotic material Yes Yes No Yes No
No toxic fumes, deposits, or carbon buildup Yes No No No No
Environmentally friendly Yes No Yes Yes No

2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and hastalloy
3. What's your cnc water jet cutting machine's max.cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut not more than 150MM for smooth cutting. now our Z axis distance is 170mm, we can do special for customers.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?

Generally speaking is 30 days. if have stock, 15 days.

6. what is the cutting speed?

Material Thickness(mm)

Cutting Speed of 420MPa pump(mm/min)

Marble

20

30

410

360

Granite

20

30

380

250

Glass Bridck

12

1100

Glass

5

10

20

1610

725

420

Glue Chipped Glass

10

630

Sponge

50

6500

Foam

50

6500

Wood

10

50

1350

270

Steel

2

4

6

8

10

15

20

60

800

570

520

360

260

150

60

26

Laminates

10

2000

Aluminum

5

970

Copper

5

460

Glass Fibre
Reinforced plastic

2

1650






<>

Tags :

Certificates

  • CE : M2019206C0184

Price

  • Delivery Port : QINGDAO

Packaging & Delivery

  • Packing :SOFT PACKING
  • Packaging Size : 2500mm x 1500mm x 1000mm
  • Package Weight : 3500kg
  • Delivery Lead Time : shipped in 25 days
  • Supply Ability : 20 sets/ month
